Cone Bottom Tanks – Dome Top

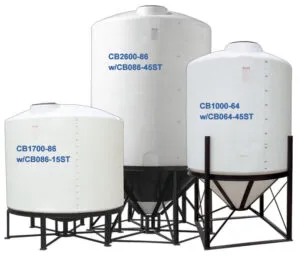

Cone Bottom Tanks are selected when a more complete drain out of stored chemical is required in indoor or outdoor installations. Tanks require stands to support the conical bottoms. Tanks are manufactured from medium- or high-density polyethylene with U.V. inhibitors. Tank walls are translucent for level viewing and equipped with gallon indicators.
View technical drawings by clicking on the part number below.
Part No. | Capacity | Weight | Dimensions | Overall Height | Lid | Fitting | Specific Gravity |
CB0300-42 | 300 Gallon – 45 deg | 102 | 42 x 67 | 79″ | 16″ | 2″ | 2.0 |
CB0800-86 | 800 Gallon – 15 deg | 182 | 86 x 48 | 58″ | 16″ | 2″ | 1.7 |
CB1000-64 | 1000 Gallon – 45 deg | 252 | 64 x 98 | 112″ | 16″ | 2″ | 1.7 |
CB1000-90 | 1000 Gallon – 15 deg | 212 | 91 x 54 | 64″ | 16″ | 2″ | 1.7 |
CB1005-64 | 1005 Gallon – 15 deg | 222 | 64 x 86 | 105″ | 16″ | 2″ | 1.7 |
CB1200-90 | 1200 Gallon – 15 deg | 242 | 91 x 62 | 74″ | 16″ | 2″ | 1.7 |
CB1300-90 | 1300 Gallon – 15 deg | 262 | 91 x 65 | 75″ | 16″ | 2″ | 1.7 |
CB1490-64 | 1490 Gallon – 45 deg | 342 | 64 x 132 | 146″ | 16″ | 2″ | 1.7 |
CB1500-64 | 1500 Gallon – 15 deg | 332 | 64 x 122 | 141″ | 16″ | 2″ | 1.7 |
CB1500-96 | 1500 Gallon – 30 deg | 252 | 96 x 80 | 92″ | 16″ | 2″ | 1.7 |
CB1600-90 | 1600 Gallon – 30 deg | 286 | 91 x 85 | 94″ | 16″ | 2″ | 1.7 |
CB1700-86 | 1700 Gallon – 15 deg | 286 | 86 x 85 | 96″ | 16″ | 2″ | 1.7 |
CB2000-96 | 2000 Gallon – 30 deg | 292 | 96 x 96 | 108″ | 16″ | 2″ | 1.7 |
CB2495-90 | 2495 Gallon – 30 deg | 487 | 91 x 119 | 129″ | 16″ | 2″ | 1.7 |
CB2500-90 | 2500 Gallon – 15 deg | 437 | 91 x 111 | 122″ | 16″ | 2″ | 1.7 |
CB2600-86 | 2600 Gallon – 45 deg | 502 | 86 x 146 | 158″ | 16″ | 2″ | 1.7 |
CB2600-90 | 2600 Gallon – 30 deg | 502 | 91 x 123 | 132″ | 16″ | 2″ | 1.7 |
CB3000-90 | 3000 Gallon – 15 deg | 552 | 91 x 128 | 138″ | 16″ | 2″ | 1.7 |
CB3000-96 | 3000 Gallon – 30 deg | 552 | 96 x 125 | 137″ | 16″ | 2″ | 1.7 |
CB4200-122 | 4200 Gallon – 15 deg | 1102 | 122 x 113 | 126″ | 16″ | 3″ | 1.7 |
CB4600-102 | 4600 Gallon – 15 deg | 1202 | 102 x 155 | 166″ | 16″ | 2″ | 1.7 |
CB4900-102 | 4900 Gallon – 15 deg | 1302 | 102 x 159 | 170″ | 16″ | 2″ | 1.7 |
CB6000-122 | 6000 Gallon – 15 deg | 1602 | 122 x 150 | 162″ | 16″ | 3″ | 1.7 |
CB6900-122 | 6900 Gallon – 15 deg | 1702 | 122 x 168 | 178″ | 16″ | 3″ | 1.7 |
CB7500-142 | 7500 Gallon – 15 deg | 1677 | 142 x 143 | 163″ | 16″ | 3″ | 1.7 |
CB8250-122 | 8250 Gallon – 15 deg | 2102 | 122 x 195 | 206″ | 16″ | 3″ | 1.7 |
CB10500-142 | 10500 Gallon – 15 deg | 2502 | 142 x 187 | 209″ | 16″ | 3″ | 1.7 |
CB12500-142 | 12500 Gallon – 15 deg | 3402 | 142 x 216 | 239″ | 16″ | 3″ | 1.7 |
Part No. | Capacity | Weight | Dimensions | Overall Height | Lid | Fitting | Specific Gravity |
Cone Bottom Tanks – Flat Top

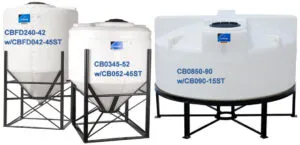

Cone Bottom Tanks are selected when a more complete drain out of stored chemical is required in indoor or outdoor installations. Flat Top Cone Bottom Tanks feature additional flats for fitting installation or mount. Tanks require stands to support the conical bottoms. Tanks are manufactured from medium- or high-density polyethylene with U.V. inhibitors. Tank walls are translucent for level viewing and equipped with gallon indicators.
View technical drawings by clicking on the part number below.
Part No. | Capacity | Weight | Dimensions | Overall Height | Lid | Fitting | Specific Gravity |
CB0055-23† | 55 Gallon – 15 deg | 26 | 23 x 39 | 52″ | 8″ | 1 1/2″ | 2.0 |
CB0100-23 | 100 Gallon – 15 deg | 36 | 23 x 65 | 78″ | 8″ | 1 1/2″ | 2.0 |
CB0145-36 | 145 Gallon – 15 deg | 52 | 36 x 43 | 56″ | 8″ | 2″ | 2.0 |
CB0150-36 | 150 Gallon – 45 deg | 63 | 36 x 51 | 63″ | 12″ | 2″ | 2.0 |
CB0200-36 | 200 Gallon – 15 deg | 58 | 36 x 55 | 68″ | 8″ | 2″ | 2.0 |
CB0200-42 | 200 Gallon – 45 deg | 77 | 42 x 55 | 67″ | 12″ | 2″ | 2.0 |
CBFD240-42 | 240 Gal Full Drain – 45 deg | 77 | 42 x 59 | 69″ | 12″ | 2″ | 2.0 |
CB0250-36 | 250 Gallon – 15 deg | 76 | 36 x 67 | 80″ | 8″ | 2″ | 2.0 |
CB0295-52 | 295 Gallon – 45 deg | 97 | 52 x 51 | 64″ | 12″ | 2″ | 1.7 |
CB0325-36 | 325 Gallon – 15 deg | 92 | 36 x 84 | 97″ | 8″ | 2″ | 2.0 |
CB0345-52 | 345 Gallon – 45 deg | 102 | 52 x 58 | 70″ | 12″ | 2″ | 2.0 |
CB0350-42 | 350 Gallon – 45 deg | 120 | 42 x 81 | 93″ | 12″ | 2″ | 2.0 |
CB0500-52 | 500 Gallon – 45 deg | 132 | 52 x 81 | 92″ | 12″ | 2″ | 2.0 |
CB0750-52 | 750 Gallon – 45 deg | 171 | 52 x 105 | 118″ | 12″ | 2″ | 1.7 |
CB0850-90 | 850 Gallon – 15 deg | 212 | 91 x 56 | 67″ | 16″ | 2″ | 1.7 |
CB1150-90 | 1150 Gallon – 15 deg | 242 | 91 x 67 | 78″ | 16″ | 2″ | 1.7 |
CB1550-90 | 1550 Gallon – 30 deg | 286 | 91 x 88 | 97″ | 16″ | 2″ | 1.7 |
CB2450-90 | 2450 Gallon – 15 deg | 437 | 91 x 114 | 125″ | 16″ | 2″ | 1.7 |
CB2550-90 | 2550 Gallon – 30 deg | 502 | 91 x 126 | 134″ | 16″ | 2″ | 1.7 |
Part No. | Capacity | Weight | Dimensions | Overall Height | Lid | Fitting | Specific Gravity |

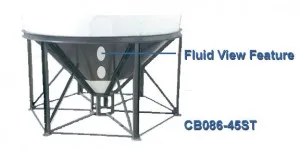

Cone Bottom Stands
View technical drawings by clicking on the part number below.
Part No. | Capacity | Weight | Dimensions | Clearance |
CB023-15ST | 55 or 100 gal – 15 deg | 37 | 20 x 20 x 24 | 13″ |
CB036-15ST | 145, 200, 250 or 325 gal – 15 deg | 84 | 31 x 31 x 26 | 12″ |
CB036-45ST | 150 gal-45 deg | 63 | 64 x 61 | 12″ |
CB042-45ST | 200, 300 or 350 gal-45 deg | 82 | 41 x 34 | 11″ |
CBFD042-45ST | 240 gal Full Drain-45 deg | 82 | 42 x 34 | 10″ |
CB052-45ST | 295, 345, 500 or 750 gal-45 deg | 180 | 55 x 41 | 13″ |
CB064-15ST | 1005 or 1500 gal – 15 deg | 320 | 64 x 25 | 16″ |
CB064-45ST | 1000 or 1490 gal-45 deg | 320 | 64 x 61 | 14″ |
CB086-15ST | 800 or 1700 gal-15 deg | 360 | 86 x 23 | 11″ |
CB086-45ST | 2600 gal-45 deg | 580 | 86 x 49 | 12″ |
CB090-15ST | 850, 1000, 1150, 1200, 1300, 2450, 2500, 2975 or 3000 gal-15 deg | 380 | 90 x 24 | 11″ |
CB090-30ST | 1550, 1600, 2495, 2550 or 2600 gal-30 deg | 640 | 90 x 40 | 9″ |
CB096-30ST | 1500, 2000, or 3000 gal – 30 deg | 553 | 96 x 38 | 12″ |
CB102-15ST | 4600 or 4900 gal-15 deg | 640 | 102 x 25 | 11″ |
CB122-15ST | 4200, 6000, 6900 or 8250 gal-15 deg | 1020 | 122 x 27 | 10″ |
CB142-15ST | 7500, 10500 or 12500 Gallon – 15 deg | 1858 | 142 x 40 | 20″ |
Part No. | Capacity | Weight | Dimensions | Clearance |
