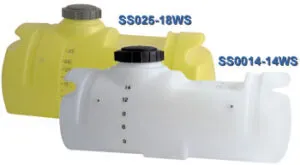

Spot Sprayer Tanks are designed as portable applicator supply tanks and are equipped with pump and equipment mount inserts. Tanks are equipped with molded-in legs to support the tank and band locators for tie down. Tanks mount with bottom inserts. All tanks are available with drain out sumps. Tanks are manufactured from linear low-density polyethylene with U.V. inhibitors and designed for containment of liquids of up to 1.7 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators.
View technical drawings by clicking on the part number below.
Part No. | Capacity | Description | Weight | Dimensions | Lid |
SM0014-14S† | 14 Gallon | Roto w/sump | 8 | 14 x 30 x 14 | 5″ |
SS0014-14† | 14 Gallon | Roto w/out sump | 8 | 14 x 30 x 14 | 5″ |
SM0025-18S† | 25 Gallon | Roto w/sump | 14 | 18 x 34 x 18 | 5″ |
SS0025-18† | 25 Gallon | Roto w/out sump | 14 | 18 x 34 x 18 | 5″ |
SB00015 | 15 Gallon | Blow molded | 7.5 | 34 x 16 x 13 | 5″ |
SB00025 | 25 Gallon | Blow molded | 12 | 36 x 18 x 17 | 5″ |
SB00030 | 30 Gallon | Blow molded | 13 | 19 x 36 x 18 | 5″ |
SB00040† | 40 Gallon | Blow molded | 17.5 | 24 x 36 x 19 | 5″ |
SB00060† | 60 Gallon | Blow molded | 21 | 24 x 36 x 26 | 5″ |
12499 | 5″ Lid w/Short Lanyard | ||||
Part No. | Capacity | Description | Weight | Dimensions | Lid |
