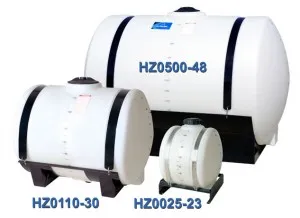

Horizontal Tanks

Round Horizontal Tanks are selected when transportable (non DOT regulated) containment is required for indoor or outdoor applications. Tanks require skids and bands to support the round bottom. All tanks are equipped with drain out sumps. Tanks are manufactured from medium-density polyethylene with U.V. inhibitors and designed for containment of liquids of up to 1.7 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators.



View technical drawings by clicking on the part number below.



Part No. Capacity Weight Dimensions Lid Fitting
HZ0025-23† 25 Gallon 16 23 x 22 5″ 3/4″
HZ0055-23† 55 Gallon 25 23 x 38 5″ 3/4″
HZ0075-24† 75 Gallon 33 24 x 47 5″ 3/4″
HZ0095-24† 95 Gallon 37 24 x 56 5″ 1-1/4″
HZ0100-23 100 Gallon 40 23 x 64 5″ 1-1/4″
HZ0110-30 110 Gallon 42 30 x 44 8″ 1-1/4″
HZ0150-30 150 Gallon x 30 50 30 x 57 8″ 3/4″ & 1-1/4″
HZ0150-32 150 Gallon x 32 50 32 x 52 8″ 3/4″ & 1-1/4″
HZ0200-32 200 Gallon x 32 66 32 x 68 8″ 3/4″ & 1-1/4″
HZ0200-38 200 Gallon x 38 66 38 x 51 8″ 3/4″ & 1-1/4″
HZ0300-38 300 Gallon 90 38 x 76 8″ 3/4″ & 1-1/4″
HZ0400-42 400 Gallon 117 42 x 76 8″ 3/4″ & 1-1/4″
HZ0500-48 500 Gallon 124 48 x 79 8″ 3/4″ & 1-1/4″
Part No. Capacity Weight Dimensions Lid Fitting

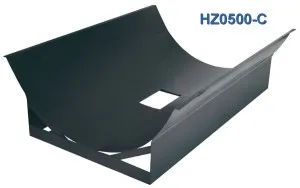

Horizontal Cradles



View technical drawings by clicking on the part number below.



Part No. Capacity Weight Bands
HZ0025-C*† 25 Gallon 18 1.5″ x 50″
HZ0055-C*† 55 Gallon 24 2″ x 50.5″
HZ0075-C† 75 Gallon 36 2″ x 51.5″
HZ0095-C† 95 Gallon 38 2″ x 51.5″
HZ0100-C† 100 Gallon 40 1.75″ x 41.50″
HZ0110-C† 110 Gallon 40 2.75″ x 60″
HZ0153-C† 150 Gallon x 30 57 2.75″ x 55″
HZ0150-C 150 Gallon x 32 56 2.75″ x 56″
HZ0232-C 200 Gallon x 32 110 2.75″ x 57″
HZ0238-C 200 Gallon x 38 85 2.75″ x 65″
HZ0300-C 300 Gallon 145 2.75″ x 69.5″
HZ0400-C 400 Gallon 146 2.75″ x 76″
HZ0500-C 500 Gallon 170 2.75″ x 88″
Part No. Capacity Weight Bands
