Couplings

The Camlock Fitting or Coupling from Advanced Tank, also known as a cam and groove is a form of hose coupling. This type of fitting is popular because it is a simple and reliable way of connecting and disconnecting equipment that transfers fluid like sprayers, pumps, hoses, and many other applications.

TerreMax’s injection molded plastic camlock fittings are manufactured in sizes ranging from 1/2” to 4”.

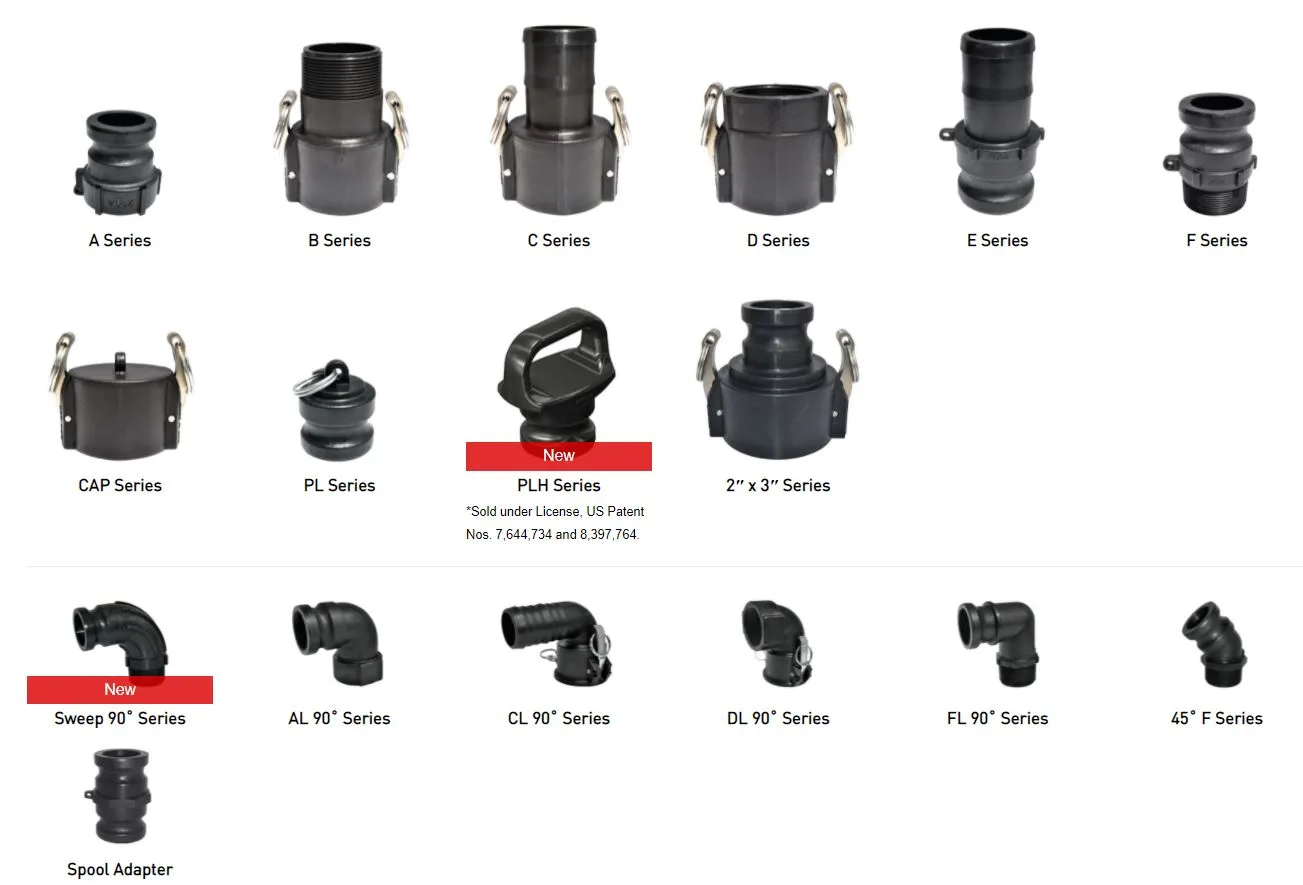

There are eight different universal configurations of fittings that are offered in the market:

1. Type ‘A’ Coupler – male adapter with female NPT thread
2. Type ‘B’ Coupler – female coupler with male NPT thread
3. Type ‘C’ Coupler – female coupler with hose barb
4. Type ‘D’ Coupler – female coupler with female NPT thread
5. Type ‘E’ Coupler – male adapter with hose barb
6. Type ‘F’ Coupler – male adapter with male NPT thread
7. Type ‘PL’ Coupler – plug for female coupler
8. Type ‘CAP’ Coupler – cap for male adapter

Our camlock couplings are available in a variety of fitting configurations involving the male adapter, female adapter, hose shank, plug, cap, and many NPT thread variations. TerreMax offers both the traditional camlock style coupling, as well as the Safety Camlock Fitting or Coupling which is a patented positive locking system to keep the arms from unintentionally coming open from pump or transport vibration.

TerreMax’s line of Camlock couplings are designed to interchange with other brands and materials like aluminum and stainless steel. Depending on whether you need a male or female adapter or coupling, male or female NPT thread, hose shank, plug or cap, TerreMax has a solution for you.

High inventory levels assure quick delivery; custom and retail packaging is available; volume discounts available through our sales department; backed by TerreMax’s product guarantee.

Depending on whether you need a male or female adapter or coupling, male or female NPT thread, hose shank, plug or cap, TerreMax has a solution for you. TerreMax camlock fittings are Made In America and pledges to be committed to its distributors and the agricultural market by developing new products, providing quality product assurance, and delivering superior customer service.

050A 3/4″ x 1/2″ Camlock (A) 3/4″ Male Adapter x 1/2″ Female NPT A Series
075A 3/4″ x 3/4″ Camlock (A) 3/4″ Male Adapter x 3/4″ Female NPT A Series
100A 1″ x 1″ Camlock (A) 1″ Male Adapter x 1″ Female NPT A Series
125A 1″ x 1 1/4″ Camlock (A) 1″ Male Adapter x 1 1/4″ Female NPT A Series
150125A 1 1/2″ x 1 1/4″ Camlock (A) 1 1/2″ Male Adapter x 1 1/4″ Female NPT A Series
150A 1 1/2″ x 1 1/2″ Camlock (A) 1 1/2″ Male Adapter x 1 1/2″ Female NPT A Series
200A 2″ x 2″ Camlock (A) 2″ Male Adapter x 2″ Female NPT A Series
300A 3″ x 3″ Camlock (A) 3″ Male Adapter x 3″ Female NPT A Series
400A 4″ x 4″ Camlock (A) 4″ Male Adapter x 4″ Female NPT A Series
200FSWP90 2″ x 2″ 2″ Male Adapter x 2″ Male NPT (90˚)
Sweep 90 Degree
300FSWP90 3″ x 3″ 3″ Male Adapter x 3″ Male NPT (90˚)
Sweep 90 Degree
150A90 1 1/2″ x 1 1/2″ Camlock (AL) 90 Degree 1 1/2″ Male Adapter x 1 1/2″ Female NPT AL Series
200A90 2″ x 2″ Camlock (AL) 90 Degree 2″ Male Adapter x 2″ Female NPT AL Series
050B 3/4″ x 1/2″ Camlock (B) 3/4″ Female Coupler x 1/2″ Male NPT B Series
075B 3/4″ x 3/4″ Camlock (B) 3/4″ Female Coupler x 3/4″ Male NPT B Series
100B 1″ x 1″ Camlock (B) 1″ Female Coupler x 1″ Male NPT B Series
125B 1″ x 1 1/4″ Camlock (B) 1″ Female Coupler x 1 1/4″ Male NPT B Series
150125B 1 1/2″ x 1 1/4″ Camlock (B) 1 1/2″ Female Coupler x 1 1/4″ Male NPT B Series
150B 1 1/2″ x 1 1/2″ Camlock (B) 1 1/2″ Female Coupler x 1 1/2″ Male NPT B Series
200B 2″ x 2″ Camlock (B) 2″ Female Coupler x 2″ Male NPT B Series
300B 3″ x 3″ Camlock (B) 3″ Female Coupler x 3″ Male NPT B Series
400B 4″ x 4″ Camlock (B) 4″ Female Coupler x 4″ Male NPT B Series
050C 3/4″ x 1/2″ Camlock (C) 3/4″ Female Coupler x 1/2″ Hose Barb C Series
075C 3/4″ x 3/4″ Camlock (C) 3/4″ Female Coupler x 3/4″ Hose Barb C Series
100C 1″ x 1″ Camlock (C) 1″ Female Coupler x 1″ Hose Barb C Series
125C 1″ x 1 1/4″ Camlock (C) 1″ Female Coupler x 1 1/4″ Hose Barb C Series
150125C 1 1/2″ x 1 1/4″ Camlock (C) 1 1/2″ Female Coupler x 1 1/4″ Hose Barb C Series
150C 1 1/2″ x 1 1/2″ Camlock (C) 1 1/2″ Female Coupler x 1 1/2″ Hose Barb C Series
200C 2″ x 2″ Camlock (C) 2″ Female Coupler x 2″ Hose Barb C Series
300C 3″ x 3″ Camlock (C) 3″ Female Coupler x 3″ Hose Barb C Series
400C 4″ x 4″ Camlock (C) 4″ Female Coupler x 4″ Hose Barb C Series
050CAP 3/4″ Camlock (CAP) 3/4″ CAP for Male Adapter CAP Series
075CAP 3/4″ Camlock (CAP) 3/4″ CAP for Male Adapter CAP Series
100CAP 1″ Camlock (CAP) 1″ CAP for Male Adapter CAP Series
125CAP 1″ Camlock (CAP) 1″ CAP for Male Adapter CAP Series
150CAP 1 1/2″ Camlock (CAP) 1 1/2″ CAP for Male Adapter CAP Series
200CAP 2″ Camlock (CAP) 2″ CAP for Male Adapter CAP Series
300CAP 3″ Camlock (CAP) 3″ CAP for Male Adapter CAP Series
400CAP 4″ Camlock (CAP) 4″ CAP for Male Adapter CAP Series
150C90 1 1/2″ x 1 1/2″ Camlock (CL) 90 Degree 1 1/2″ Female Coupler x 1 1/2″ Hose Barb CL Series
200C90 2″ x 2″ Camlock (CL) 90 Degree 2″ Female Coupler x 2″ Hose Barb CL Series
050D 3/4″ x 1/2″ Camlock (D) 3/4″ Famale Coupler x 1/2″ Female NPT D Series
075D 3/4″ x 3/4″ Camlock (D) 3/4″ Female Coupler x 3/4″ Female NPT D Series
100D 1″ x 1″ Camlock (D) 1″ Female Coupler x 1″ Female NPT D Series
125D 1″ x 1 1/4″ Camlock (D) 1″ Female Coupler x 1 1/4″ Female NPT D Series
150125D 1 1/2″ x 1 1/4″ Camlock (D) 1 1/2″ Female Coupler x 1 1/4″ Female NPT D Series
150D 1 1/2″ x 1 1/2″ Camlock (D) 1 1/2″ Female Coupler x 1 1/2″ Female NPT D Series
200D 2″ x 2″ Camlock (D) 2″ Female Coupler x 2″ Female NPT D Series
300D 3″ x 3″ Camlock (D) 3″ Female Coupler x 3″ Female NPT D Series
400D 4″ x 4″ Camlock (D) 4″ Female Coupler x 4″ Female NPT D Series
150D90 1 1/2″ x 1 1/2″ Camlock (DL) 90 Degree 1 1/2″ Female Coupler x 1 1/2″ Female NPT DL Series
200D90 2″ x 2″ Camlock (DL) 90 Degree 2″ Female Coupler x 2″ Female NPT DL Series
050E 3/4″ x 1/2″ Camlock (E) 3/4″ Male Adapter x 1/2″ Hose Barb E Series
075E 3/4″ x 3/4″ Camlock (E) 3/4″ Male Adapter x 3/4″ Hose Barb E Series
100E 1″ x 1″ Camlock (E) 1″ Male Adapter x 1″ Hose Barb E Series
125E 1″ x 1 1/4″ Camlock (E) 1″ Male Adapter x 1 1/4″ Hose Barb E Series
150125E 1 1/2″ x 1 1/4″ Camlock (E) 1 1/2″ Male Adapter x 1 1/4″ Hose Barb E Series
150E 1 1/2″ x 1 1/2″ Camlock (E) 1 1/2″ Male Adapter x 1 1/2″ Hose Barb E Series
200E 2″ x 2″ Camlock (E) 2″ Male Adapter x 2″ Hose Barb E Series
300E 3″ x 3″ Camlock (E) 3″ Male Adapter x 3″ Hose Barb E Series
400E 4″ x 4″ Camlock (E) 4″ Male Adapter x 4″ Hose Barb E Series
050F 3/4″ x 1/2″ Camlock (F) 3/4″ Male Adapter x 1/2″ Male NPT F Series
075F 3/4″ x 3/4″ Camlock (F) 3/4″ Male Adapter x 3/4″ Male NPT F Series
100F 1″ x 1″ Camlock (F) 1″ Male Adapter x 1″ Male NPT F Series
125F 1″ x 1 1/4″ Camlock (F) 1″ Male Adapter x 1 1/4″ Male NPT F Series
150125F 1 1/2″ x 1 1/4″ Camlock (F) 1 1/2″ Male Adapter x 1 1/4″ Male NPT F Series
150F 1 1/2″ x 1 1/2″ Camlock (F) 1 1/2″ Male Adapter x 1 1/2″ Male NPT F Series
200F 2″ x 2″ Camlock (F) 2″ Male Adapter x 2″ Male NPT F Series
300F 3″ x 3″ Camlock (F) 3″ Male Adapter x 3″ Male NPT F Series
400F 4″ x 4″ Camlock (F) 4″ Male Adapter x 4″ Male NPT F Series
150F90 1 1/2″ x 1 1/2″ Camlock (FL) 90 Degree 1 1/2″ Male Adapter x 1 1/2″ Male NPT FL Series
200F90 2″ x 2″ Camlock (FL) 90 Degree 2″ Male Adapter x 2″ Male NPT FL Series
050PL 3/4″ Camlock (PL) 3/4″ Plug for Female Coupler PL Series
075PL 3/4″ Camlock (PL) 3/4″ Plug for Female Coupler PL Series
100PL 1″ Camlock(PL) 1″ Plug for Female Coupler PL Series
125PL 1″ Camlock (PL) 1″ Plug for Female Coupler PL Series
150PL 1 1/2″ Camlock (PL) 1 1/2″ Plug for Female Coupler PL Series
200PL 2″ Camlock (PL) 2″ Plug for Female Coupler PL Series
300PL 3″ Camlock (PL) 3″ Plug for Female Coupler PL Series
400PL 4″ Camlock (PL) 4″ Plug for Female Coupler PL Series
300200A 2″ x 3″ Camlock (A) 2″ Male Adapter x 3″ Female NPT 2″ x 3″ Series
300200F 2″ x 3″ Camlock (F) 2″ Male Adapter x 3″ Male NPT 2″ x 3″ Series
300200D 3″ x 2″ Camlock (D) 3″ Female Coupler x 2″ Female NPT 2″ x 3″ Series
300B200A 3″ x 2″ Camlock (BA) 3″ Famale Coupler x 2″ Male Adapter 2″ x 3″ Series
200F45 2″ x 2″ Camlock (F45) 45 Degree 2″ Male Adapter x 2″ Male NPT 45 degree F Series
200PLH 2″ 2″ Plug with Handle (*Sold under License, US Patent Nos. 7,644,734 and 8,397,764.) Plug w/ Handle
300PLH 3″ 3″ Plug with Handle (*Sold under License, US Patent Nos. 7,644,734 and 8,397,764.) Plug w/ Handle
200FF 2″ x 2″ 2″ Male Adapter x 2″ Male Adapter Spool Adapter
