Free Standing Horizontal

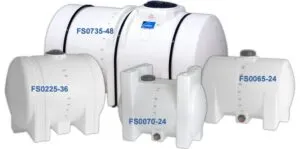

Free Standing Horizontal Bulk Storage Tanks without Sump



Free Standing Leg Tanks are selected when transportable (non DOT regulated) containment is required for indoor or outdoor applications. Leg Tanks are equipped with molded-in legs to support the tank and band locators for tie down. Tanks are manufactured from medium- or high-density polyethylene with U.V. inhibitors and designed for containment of liquids of up to 1.7 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators.



Part No. Capacity Description Weight Dimensions Lid Fitting
FS0035-18† 35 Gallon 16 18 x 34 5″ 1″
FS0055-23 55 Gallon 22 23 x 34 x 27 5″ 1″
FS0065-24† 65 Gallon 33 24 x 39 5″ 1″
FS0070-24† 70 Gallon Stackable 37 24 x 39 5″ 1″
FS0125-32 125 Gallon 54 32 x 44 8″ 1″
FS0165-32 165 Gallon 72 32 x 54 8″ 1″
FS0225-38 225 Gallon 87 38 x 52 8″ 2″
FS0325-38 325 Gallon 108 38 x 72 12″ 2″
FS0335-44 335 Gallon 118 44 x 56 16″ 2″
FS0510-57 510 Gallon (Hoops Req.) Elliptical 164 57 x 80 x 39 16″ 2″
FS0535-48 535 Gallon 186 48 x 78 16″ 2″
FS0735-48 735 Gal (Hoops Req.) 252 48 x 103 16″ 2″
FS0925-DW 925 Gal (Hoops Req.) 292 62 x 81 16″ 2″
FS1005-48 1005 Gal (Hoops Req.) 342 48 x 130 16″ 2″
FS1035-78 1035 Gal (Hoops Req.) Elliptical 292 78 x 90 x 52 16″ 2″
FS1065-56W 1065 Gal (Hoops Req.) 342 56 x 105 16″ 2″
FS1300-DW 1300 Gal (Hoops Req.) 427 62 x 114 16″ 2″
FS1610-78 1610 Gal (Hoops Req.) Elliptical 530 78 x 139 x 56 16″ 2″
FS1750-62 1750 Gal (Hoops Req.) 616 62 x 147 16″ 2″
FS1800-2W 1800 Gal (Hoops Req.) multi tanks (2) 580 62 x 149 16″ 2″
FS1850-78 1850 Gal (Hoops Req.) Elliptical 571 78 x 139 x 63 16″ 2″
FS2350-88 2350 Gal (Hoops Req.) Elliptical 920 88 x 146 x 63 16″ 2″
FS2600-2W 2600 Gal (Hoops Req.) multi tanks (2) 850 62 x 212 16″ 2″
FS2750-88 2750 Gal (Hoops Req.) Elliptical 1150 88 x 146 x 70 16″ 2″
FS3250-88 3250 Gal (Hoops Req.) Elliptical 1208 88 x 146 x 79 16″ 3″
FS3750-88 3750 Gal (Hoops Req.) Elliptical 1422 88 x 146 x 91 16″ 3″
FS4200-92 4200 Gallon (Hoops Req.) Elliptical 1648 92 x 195 x 80 16″ 3″
FS4250-88 4250 Gal (Hoops Req.) Elliptical 1617 88 x 146 x 101 16″ 3″

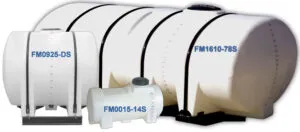

Free Standing Horizontal Bulk Storage Tanks with Sump



Free Standing Leg Tanks are selected when transportable (non DOT regulated) containment is required for indoor or outdoor applications. Leg Tanks are equipped with molded-in legs to support the tank and band locators for tie down. Tanks are manufactured from medium- or high-density polyethylene with U.V. inhibitors and designed for containment of liquids of up to 1.7 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators. Skid required to support elevated legs.



Part No. Capacity Description Weight Dimensions Lid Fitting
FM0015-14S† 15 Gallon 13 14 x 30 5″
FM0025-16S† 25 Gallon 15 16 x 34 5″
FM0925-DS 925 Gal (Hoops & Skid Req.) 292 62 x 81 16″ 2″
FM1010-48 1010 Gal (Hoops & Skid Req.) 342 48 x 130 16″ 2″
FM1065-56S 1065 Gal (Hoops & Skid Req.) 342 56 x 105 16″ 2″
FM1300-DS 1300 Gal (Hoops & Skid Req.) 427 62 x 114 16″ 2″
FM1310-62 1310 Gal (Hoops & Skid Req.) 500 62 x 114 x 74 16″ 2″
FM1610-78S 1610 Gal (Hoops & Skid Req.) Elliptical 530 78 x 139 x 58 16″ 2″
FM1750-62S 1750 Gal (Hoops & Skid Req.) 616 62 x 147 16″ 2″
FM1800-2S 1800 Gal (Hoops & Skid Req.) multi tanks (2) 580 62 x 149 16″ 2″
FM1850-78 1850 Gal (Hoops & Skid Req.) Elliptical 571 78 x 139 x 67 16″ 2″
FM2350-88S 2350 Gal (Hoops & Skid Req.) Elliptical 920 88 x 146 x 63 16″ 2″
FM2600-2S 2600 Gal (Hoops & Skid Req.) multi tanks (2) 850 62 x 212 16″ 2″
FM2750-88S 2750 Gal (Hoops & Skid Req.) Elliptical 1150 88 x 146 x 70 16″ 2″
FM3200-2S 3200 Gal (Hoops & Skid Req.) multi tanks (2)/ Elliptical 1100 88 x 172 x 74 16″ 2″
FM3250-88S 3250 Gal (Hoops & Skid Req.) Elliptical 1208 88 x 146 x 79 16″ 3″
FM3750-88S 3750 Gal (Hoops & Skid Req.) Elliptical 1422 88 x 146 x 91 16″ 3″
FM4200-92 4200 Gal (Hoops Req.) Elliptical 1648 92 x 195 x 80 16″ 3″
FM4250-88S 4250 Gal (Hoops & Skid Req.) Elliptical 1617 88 x 146 x 101 16″ 3″
