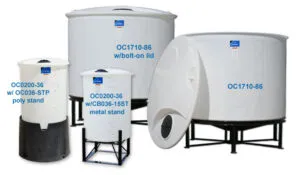

Open Top Cone Bottom Tanks

Open Top Cone Bottom Tanks are designed for stationary applications.  All tanks are furnished with a removable crowned top, fastened to a flange around the top of the tank.   Tanks are manufactured from medium-density polyethylene with U.V. inhibitors.  Tank walls are translucent for level viewing and equipped with gallon and/or liter indicators.  Cone Bottom style requires the use of a stand for support.  Specific gravity is listed below.

*hinged lid option is available

Part No. Capacity Description Weight Dimensions Overall Height Fitting Specific Gravity
OC0055-23* 55 Gallon Cone Bottom with bolt-on top 15-deg 26 23 x 37 1 1/2″ 2.0
OC0100-23* 100 Gallon Cone Bottom with bolt-on top 15-deg 36 23 x 63 1 1/2″ 2.0
OC0145-36* 145 Gallon Cone Bottom with bolt-on top 15-deg 52 36 x 41 2″ 2.0
OC0200-36* 200 Gallon Cone Bottom with bolt-on top 15-deg 58 36 x 53 2″ 2.0
OC0250-36* 250 Gallon Cone Bottom with bolt-on top 15-deg 76 36 x 65 2″ 2.0
OC0325-36* 325 Gallon Cone Bottom with bolt-on top 15-deg 95 36 x 82 2″ 2.0
OC0840-90 840 Gallon Cone Bottom with bolt-on top 15-deg 214 91 x 49 61″ 2″ 1.7
OC1010-64 1010 Gallon Cone Bottom with bolt-on top 45-deg 252 64 x 99 113″ 2″ 1.7
OC1050-90 1050 Gallon Cone Bottom with bolt-on top 15-deg 242 91 x 57 69″ 2″ 1.7
OC1150-90 1150 Gallon Cone Bottom with bolt-on top 15-deg 262 91 x 60 72″ 2″ 1.7
OC1450-90 1450 Gallon Cone Bottom with bolt-on top 30-deg 286 91 x 79 89 2″ 1.7
OC1500-64 1500 Gallon Cone Bottom with bolt-on lid 45-deg 342 64 x 134 147″ 2″ 1.7
OC1710-86 1710 Gallon Cone Bottom with bolt-on top 15-deg 286 86 x 87 98″ 2″ 1.7
OC2350-90 2350 Gallon Cone Bottom with bolt-on top 15-deg 437 91 x 106 118″ 2″ 1.7
OC2440-90 2440 Gallon Cone Bottom with bolt-on top 30-deg 502 91 x 117 127″ 2″ 1.7
OC2610-86 2610 Gallon Cone Bottom with bolt-on top 45-deg 502 86 x 147 158″ 2″ 1.7
Part No. Capacity Description Weight Dimensions Overall Height Fitting Specific Gravity
