PCO tanks can be selected for stationary or transportable (non DOT regulated) applications both indoors and outdoors. The tanks have a rounded bottom for best fluid drainage and a 2” deep sump option is also available. PCO tanks must be securely anchored for use in transportable applications and galvanized steel bands are available for this purpose. PCO300-37 comes with an internal baffle for support and fluid control. The tanks are manufactured from medium-density polyethylene with U.V. inhibitors and designed for containment of liquids of up to 1.7 specific gravity.
View technical drawings by clicking on the part number below.

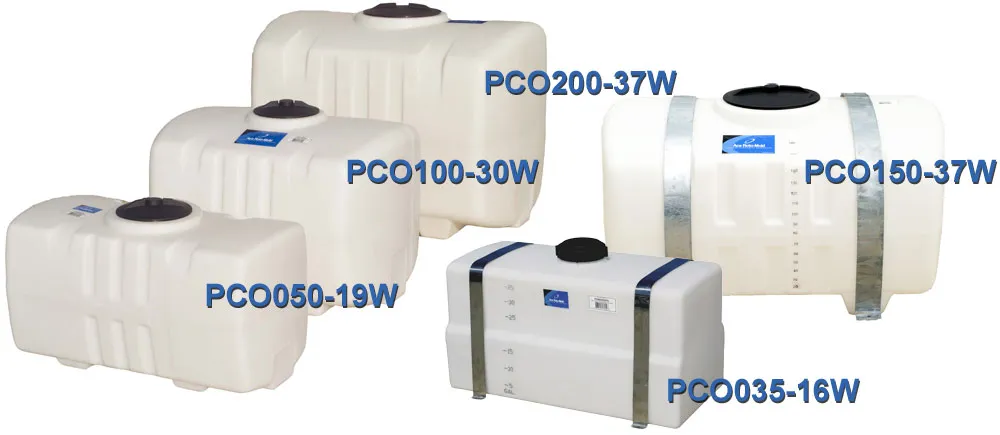

Part No. | Capacity | Weight | Dimensions | Lid | Fitting |
PCO035-16W† | 35 Gallon | 26 | 16 x 35 x 21 | 5″ | 1″ |
PCO050-19S† | 50 Gallon w/ sump | 27 | 19 x 38 x 23 | 8″ | 1″ |
PCO050-19W† | 50 Gallon | 27 | 19 x 38 x 23 | 8″ | 1″ |
PCO100-30S† | 100 Gallon w/ sump | 52 | 30 x 38 x 29 | 8″ | 1″ |
PCO100-30W† | 100 Gallon | 52 | 30 x 38 x 29 | 8″ | 1″ |
PCO150-37S | 150 Gallon w/ sump | 63 | 37 x 48 x 29 | 12″ | 1 1/4″ |
PCO150-37W | 150 Gallon | 63 | 37 x 48 x 29 | 12″ | 1 1/4″ |
PCO200-37S | 200 Gallon w/ sump | 84 | 37 x 48 x 38 | 12″ | 1 1/4″ |
PCO200-37W | 200 Gallon | 84 | 37 x 48 x 38 | 12″ | 1 1/4″ |
PCO300-37S | 300 Gallon w/ sump | 160 | 37 x 69 x 40 | 16″ | 2″ |
PCO300-37W | 300 Gallon | 160 | 37 x 69 x 40 | 16″ | 2″ |
Part No. | Capacity | Weight | Dimensions | Lid | Fitting |
