View technical drawings by clicking on the part number below.

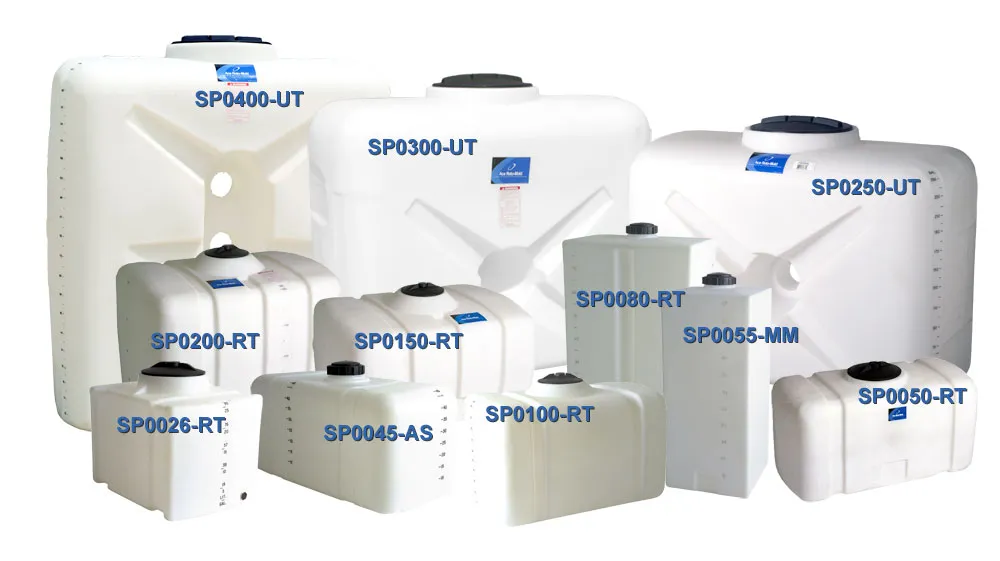

| Part No. | Capacity | Weight | Dimensions | Lid | Fitting |
| SP0026-RT† | 26 Gal Rectangle | 15 | 18 x 25 x 19 | 8″ | 3/4″ outlet |
| SP0045-AS† | 45 Gal Rectangle | 23 | 18 x 37 x 22 | 5″ | |
| SP0050-RT†* | 50 Gal Rectangle | 27 | 19 x 38 x 23 | 8″ | 1″ |
| SP0055-MM† | 55 Gal Rectangle | 32 | 18 x 18 x 44 | 5″ | 1″ |
| SP0080-RT†* | 80 Gal Rectangle (Support Req.) | 42 | 18 x 27 x 44 | 5″ | 1″ |
| SP0100-RT†* | 100 Gal Rectangle | 50 | 27 x 43 x 29 | 8″ | 1″ |
| SP0150-RT* | 150 Gal Rectangle | 62 | 36 x 48 x 29 | 8″ | 1″ |
| SP0200-RT* | 200 Gal Rectangle | 82 | 36 x 48 x 38 | 8″ | 1″ |
| SP0250-UT | 250 Gal Upright Rectangle | 115 | 29 x 62 x 42 | 16″ | 1-1/2″ |
| SP0300-UT | 300 Gal Upright Rectangle | 159 | 29 x 62 x 53 | 16″ | 1-1/2″ |
| SP0400-UT | 400 Gal Upright Rectangle | 209 | 29 x 62 x 66 | 16″ | 2″ |
| SP0500-UT | 500 Gal Rectangle | 223 | 31 x 74 x 71 | 16″ | 2″ |
| SP0750-UT | 750 Gal Rectangle | 318 | 35 x 82 x 86 | 16″ | 2″ |
| SP1000-UT | 1000 Gal Rectangle | 407 | 40 x 92 x 89 | 16″ | 2″ |
| Part No. | Capacity | Weight | Dimensions | Lid | Fitting |
